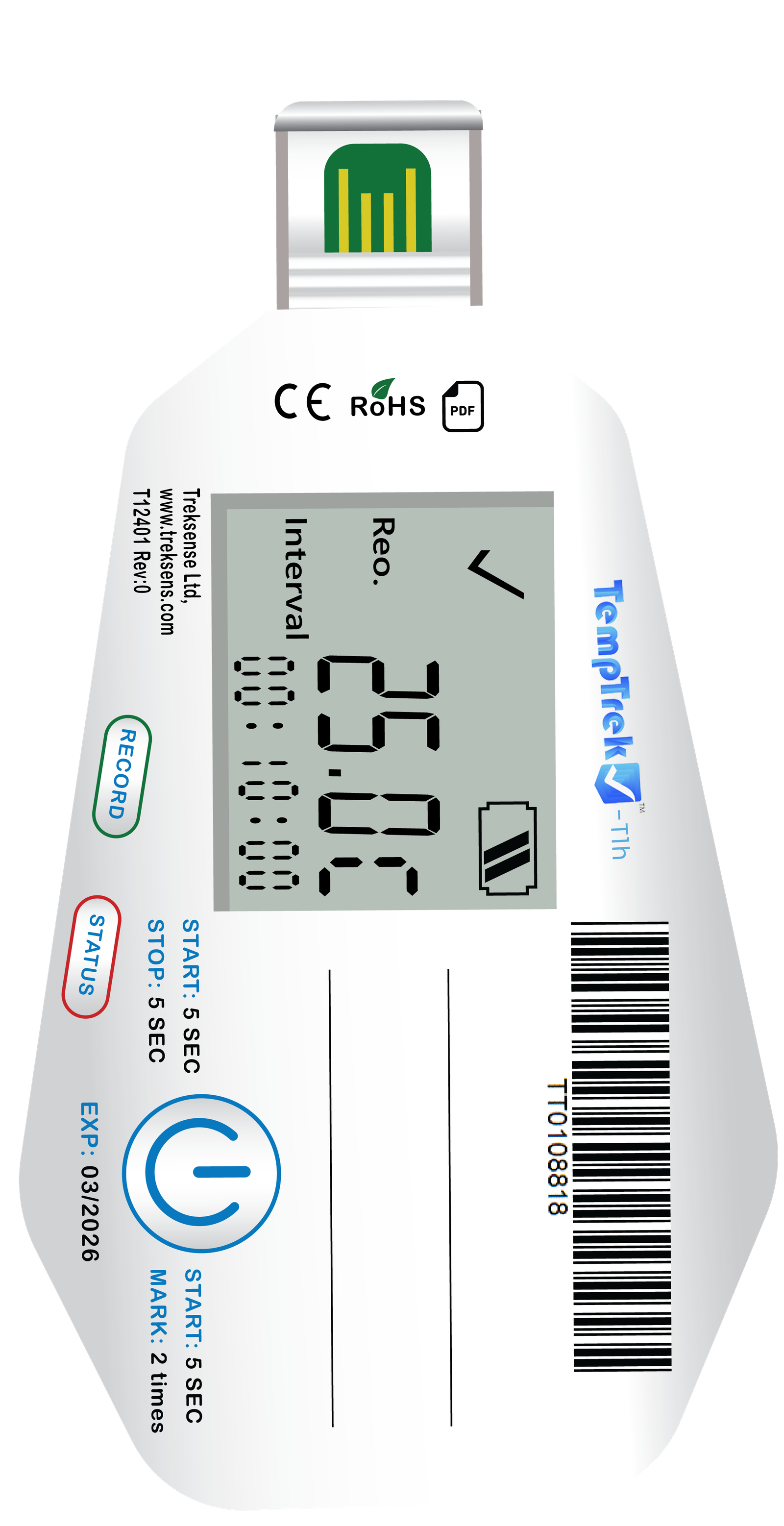

TempTrek-T1H

Single Use USB Temperature and
Humidity Data Logger

Download Technical Datasheet

Key highlights

  • 333 Days of recording battery life

  • Preprogrammed (User Programmable)

  • Intuitive LCD display for quick decision

  • Up to 5 (Single/Cumulative) temperature alarm limits

  • 2 Years Shelf Life

  • Up to 2 (Single/Cumulative) Humidity Alarm Limits

  • FDA 21 CFR Complaint Software

  • Secure backup failover log feature

  • Encrypted Auto PDF Report without software & dock

  • 6 Point NIST Calibration certificate

Temperature Range:
-30℃ to +70℃ & 0%RH to 100%RH

With a temperature and humidity range of -30℃ to +70℃ & 0%RH to 100%RH TempTrek T1H demonstrates robust functionality in extreme environments, guaranteeing reliable performance even in harsh and challenging conditions.

Type-A built in USB

Facilitates high-speed data transfer and power delivery, making it a versatile and ubiquitous choice for connecting without separate readout device or drivers required

Automated encrypted PDF

Generates secure, encrypted PDF reports seamlessly without the need for extra software, ensuring data confidentiality

IP 67 protected

Signifies a robust level of protection for electronic devices, guaranteeing resistance against dust infiltration and the capability to withstand immersion in water up to 1 meter for 30 minutes

Factory Programmed

Treksense delivers configured recording parameters for you, ensuring optimal settings are in place before shipment. With just a simple click, you can initiate the recording process effortlessly

DO160G & IATA PI970 II

Meets the stringent standards of DO-160G environmental conditions and test procedures for airborne equipment, and qualified for air transport in active status, this product also complies with IATA PI970 II requirements for safe air transport

GDP Compliant & WHO complaint

Meticulously crafted to meet and exceed World Health Organization (WHO) and Goods Distribution Practices (GDP) standards and compliances.

Intuitive Display

Intuitive displays enable swift decision-making with clear and concise information. Designed for rapid acceptance or rejection, these interfaces prioritize simplicity, presenting key data in a format that allows users to make quick and informed choices

Warranty

One year warranty from the shipping date

TempTrek T1H -Technical Specifications

Logging Options Single Use, Single Use-User Programmable, Single Use Circular Logging
Temperature Range -30℃ to +70℃
Temperature Accuracy ±0.5℃ / ± 0.9 F (-20℃ to +40℃) ±1.0℃ / ± 1.8 F (-30℃ to -20℃) ±1.0℃ / ± 1.8 F (+40℃ to +70℃)
Humidity Range 0%RH to 100 %RH
Humidity accuracy 3 % RH (20 %RH to 80 %RH) ± 5 % RH (Others)
Temperature Resolution 0.1℃/F Full range
Humidity Resolution 0.1 % RH Full range
Memory/Sensor Type NVFM-16K / Internal NTC Sensor
Data Storage Capacity 16,000 data points/32,000 data points
Battery Type/Performance 3.0 v coin cell lithium battery – user-replaceable / more than 12 Months operation life in recording mode
Protection Index IP67 as per ANSI/IEC 60529 & NEMA-6
Recording Duration 333 days
Data logging interval Programmable from 10 seconds up to a maximum of 24 Hours
Startup Delay 0 minutes to 30 days
Programmable Alarm Limits Up to 5 High/Low Temprature Limits Up to 2 High/Low Humidity Limits
Alarm Delay Thresholds Single event or cumulative event
LED Indicators Green and Red blinking indicators
Startup Modes Manual press button or Automatic launch option or Immediate start from the TreksenOne Software
Stop Modes Manual press button or USB stop or from TreksenOne Software
Data Management software TreksenOne Pro (FDA 21 CFR compliant)
Dimensions 97mm L X 53mm W X 8mm H
eight 65g (2.29 oz)
Quality compliance Certifications CE, EN12830 compliant, UKCA, IATA PI970 II, RTCA-DO160G complaint, WEEE compliance, RoHS complaint, Validation package
Minimum OS Requirements Windows® PC w/ Windows® 7 or higher; Mac OS X 10.0 or higher ; Any PDF reader
Computer Interface USB 2.0, A-Type Plug

Application
